Electrical Control Panel

• Application
• Industrial

• Cabinet Material
• Powder-coated steel

• Control System
• PLC based

• Cooling System
• Ventilated type

• Current Rating
• Up to 2000A

• Display Type
• Other, Digital display

• Features
• Overload protection

• Frequency (MHz)
• 50Hz

• IP Rating
• Other, IP68

• Material
• Mild Steel

• Operating Voltage
• Three-phase 415V

• Panel Type
• VFD

• Protection Level
• Other, Advanced protection

• Rated Current
• 2000Amps Max

• Rated Voltage
• 415 V

• Standard
• IS, IEC compliant

• Surface Finish
• Other, Matte texture

• Way
• Multi-way

• Application
• To Control, Monitor, And Synchronize DGs.

• Base Material
• Mild Steel

• Cabinet Material
• MS

• Components
• MCB, MCCB, ACB, Relays, Meters

• Connectivity Type
• Wired/RS-485

• Control System
• Microprocessor/PLC Based

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 2000A

• Dimension (L*W*H)
• 1500x1200x600 mm

• Display Type
• Other, Digital/LED

• Features
• Semi Automatic, Copper Bus Bar, Modular Design

• Frequency (MHz)
• 50Hz

• IP Rating
• Ip54

• Material
• Other, MS

• Maximum Output Current
• 2000A

• Operating Voltage
• 440V

• Panel Type
• Synchronization Panel

• Product Type
• Other, DG Synchronization Controller Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 2000A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 440V

• Rated Voltage
• 440V

• Standard
• IS Standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Three Phase

• Application
• To Monitor And Control Heavy-duty And Large-scale Machinery In Industrial And Commercial Application

• Base Material
• Mild Steel

• Cabinet Material
• Powder coated steel

• Components
• MCB, MCCB, Relays

• Connectivity Type
• Ethernet, RS485

• Control System
• PLC Based

• Cooling System
• Ventilated

• Cover Material
• Other, Steel

• Current Rating
• Upto 2000A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Digital/LED

• Frequency (MHz)
• 60Hz

• IP Rating
• Other, IP68

• Material
• Mild Steel

• Maximum Output Current
• 2000A

• Operating Voltage
• 440V

• Panel Type
• PLC

• Product Type
• Other, Automation Panel

• Protection Class
• Class I

• Protection Level
• Other, IP68

• Rated Current
• Upto 2000 Amps

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 440V

• Rated Voltage
• 440V

• Standard
• IEC 61439

• Surface Color
• Other, Gray

• Surface Finish
• Other, Smooth powder coated

• Thickness
• 2 mm

• Way
• Multiple

• Application
• Industrial Automation

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• MCB, Contactor, Relay, PLC

• Connectivity Type
• Wired

• Control System
• Semi Automatic PLC

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 5000 Amps

• Dimension (L*W*H)
• 1200 x 800 x 2200 mm

• Display Type
• Other, LED Indicator

• Features
• Robust Design, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP 54

• Material
• Mild Steel

• Maximum Output Current
• 5000 Amps

• Operating Voltage
• 415 V

• Panel Type
• PLC

• Product Type
• Other, Panel

• Protection Class
• Class I

• Protection Level
• Other, IP 54

• Rated Current
• 5000 Amps

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• Customized

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Multi Way

• Application
• Industrial

• Current Rating
• 4500A

• Frequency (MHz)
• 50Hz

• IP Rating
• Other, IP 67

• Material
• Mild Steel

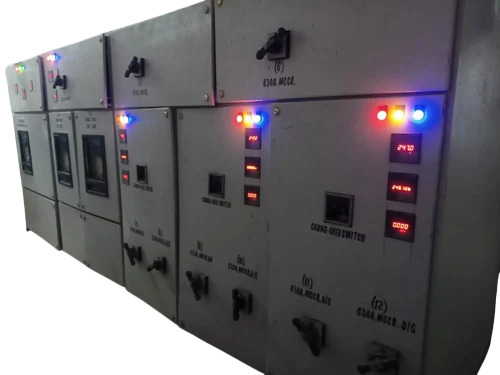

• Panel Type
• PDB Panel

• Rated Voltage
• 415 V

• Application
• Access to Simulation Platforms and Connected Bus Systems

• Cabinet Material
• Powder-coated Steel

• Control System
• Microcontroller Based

• Display Type
• Other, LED indicators

• Frequency (MHz)
• 50Hz

• Material
• Mild Steel

• Operating Voltage
• 440 V

• Panel Type
• Modular

• Product Type

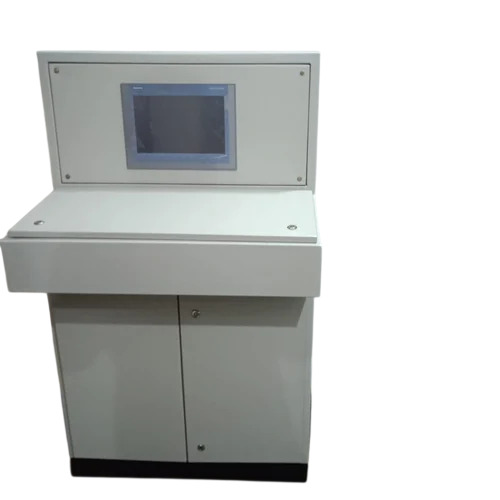

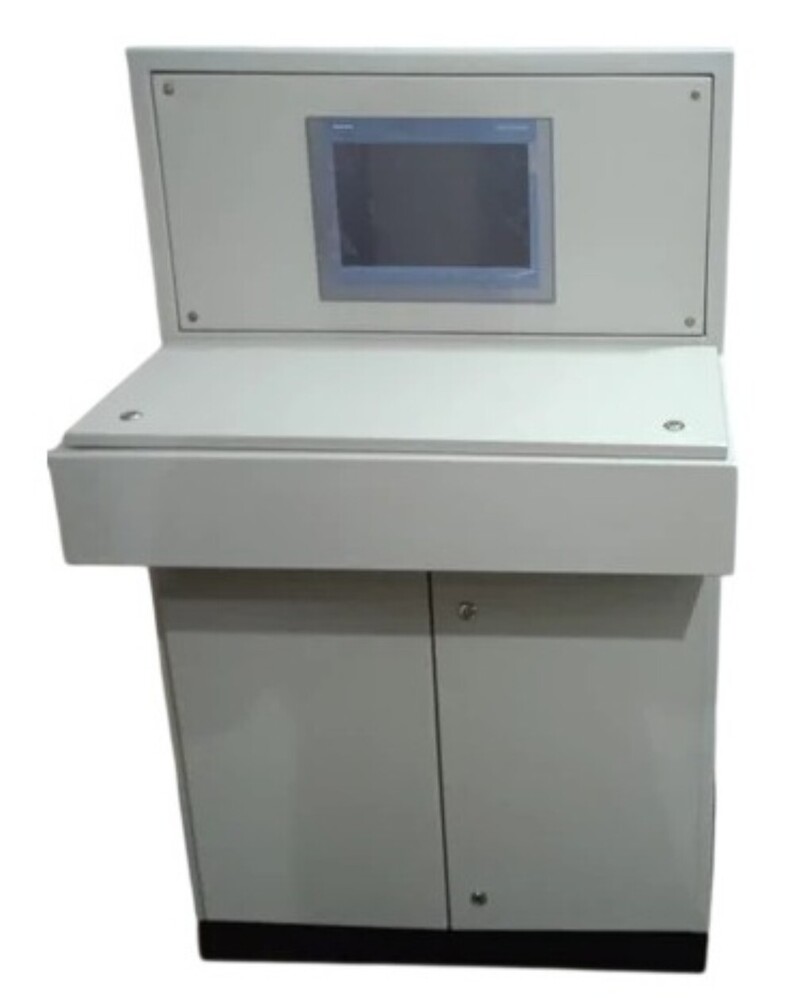

• Other, Electric Desk Control Panel

• Protection Level
• Other, Standard

• Rated Voltage
• 440 V

• Surface Color
• Other, White (Base)

• Surface Finish
• Other, Smooth

• Way
• Single way

• Application
• Street Light Controlling

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• Copper Bus Bar, MCBs

• Control System
• Manual

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 200A

• Dimension (L*W*H)
• Custom as per requirement

• Features
• Rust proof, Weather resistant

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Operating Voltage
• 415 V

• Panel Type
• Three Phase

• Product Type
• Other, Street Light Control Panel

• Protection Class
• Class 1

• Protection Level
• IP54

• Rated Current
• 200A

• Rated Voltage
• 415 V

• Surface Color
• White

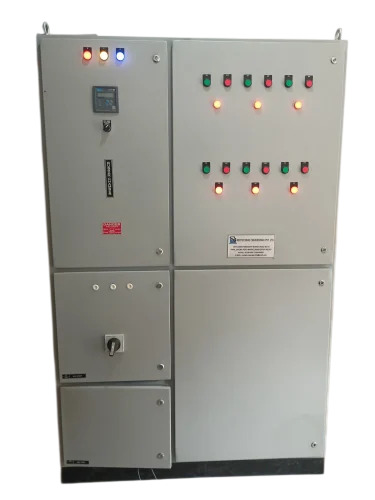

• Application
• Power Distribution

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• Mild Steel Sheet

• Components
• MCB, MCCB, Busbar

• Connectivity Type
• Bolt/Busbar

• Control System
• Auto/Manual Switch

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 200A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Analog/LED

• Frequency (MHz)
• 50 Hz

• Material
• Mild Steel

• Panel Type
• Double Busbar

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• Upto 2000 Amps

• Rated Insulation Voltage
• 660 V

• Rated Voltage
• 415 V

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way to 12 Way

• Application
• Industrial

• Frequency (MHz)
• 50Hz

• IP Rating
• Other, IP68

• Material
• Mild Steel

• Rated Voltage
• 415 V

• Application
• Industrial Motors

• Control System
• Relay Based

• Current Rating
• 1250A

• Display Type
• Other, Analog Meters

• Material
• Other, MS

• Panel Type
• Power Control

• Protection Level
• Other, IP42

• Rated Current
• Upto 5000 Amps

• Rated Voltage
• 415 V

• Application
• Industrial

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• CRCA

• Components
• MCB, Contactors, Relays

• Connectivity Type
• Wired

• Control System
• Semi-Automatic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, CRCA Sheet

• Current Rating
• Upto 2000 Amps

• Dimension (L*W*H)
• As per requirement

• Display Type
• Other, Analog/Digital (option)

• Features
• Aluminium Bus Bar, 1 HP Motor Power

• Frequency (MHz)
• 50-60 Hz

• IP Rating
• Other, IP 42

• Material
• Other, CRCA

• Operating Voltage
• 220V

• Panel Type
• Single Phase Control Panel

• Product Type
• Other, Electrical Panel

• Protection Class
• Class I

• Protection Level
• Other, IP 42

• Rated Current
• Upto 2000 Amps

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 220V

• Rated Voltage
• 220V

• Standard
• IS Standard

• Surface Color
• Other, Light Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.2mm approx.

• Way
• Single Way

• Application
• Industrial Power Control

• Base Material
• Mild Steel

• Cabinet Material
• MS Sheet

• Components
• Ammeter, Voltmeter, MCBs

• Connectivity Type
• Busbar

• Control System
• PLC Compatible

• Cooling System
• Air Vents

• Cover Material
• Mild Steel

• Current Rating
• 600A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Analog/LED

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 2000 Amps

• Operating Voltage
• 415V AC

• Panel Type

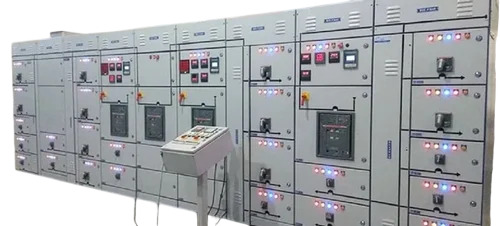

• PMCC Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Upto 2000 Amps

• Rated Voltage
• 415 V

• Standard
• IEC Standard

• Surface Color
• Other, RAL 7032

• Surface Finish
• Powder Coated

• Way
• Multi-way

• Application
• To Monitor And Control Heavy-duty And Large-scale Machinery In Industrial And Commercial Application

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• Mild Steel

• Components
• Contactors, Overload Relays

• Connectivity Type
• Busbar System

• Control System
• Automatic Control

• Cooling System
• Natural Air Vented

• Cover Material
• Mild Steel

• Current Rating
• 800A

• Dimension (L*W*H)
• Customizable Size

• Display Type
• Other, Analog/LED Meters

• Features
• Easy Maintenance, Modular Design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP 54

• Material
• Mild Steel

• Maximum Output Current
• 1600A

• Panel Type

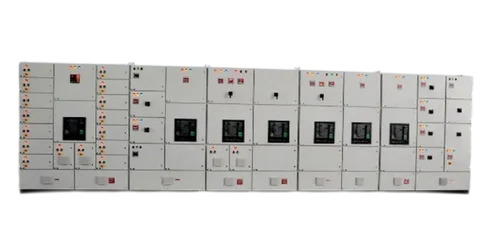

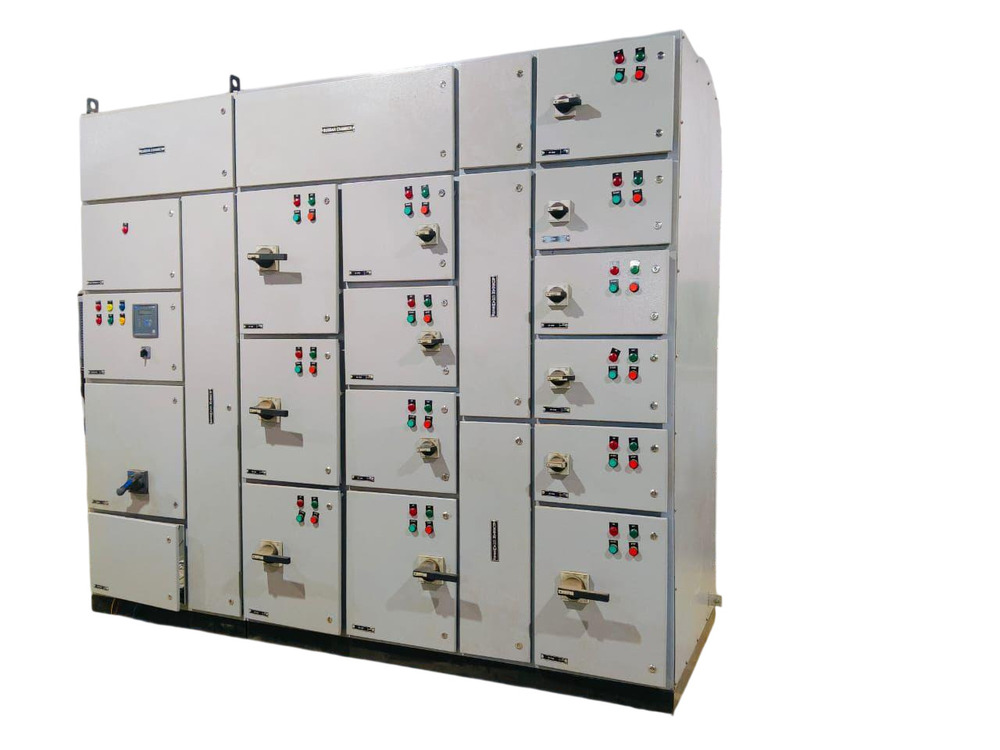

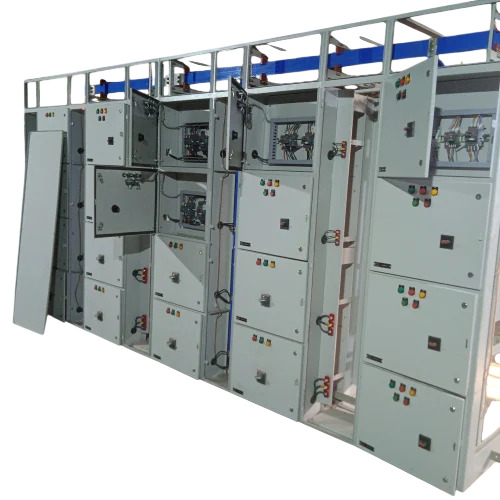

• MCC Panel

• Protection Class
• Class I

• Protection Level
• Other, Dust & Splash Proof

• Rated Current
• 1600A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IEC 61439-1

• Surface Color
• Other, RAL 7035 Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Compartmental

• Connectivity Type
• Ethernet

• Control System
• Touch PLC

• Display Type
• Other, TFT LCD

• Features
• Touch Screen, Capacitive

• IP Rating
• Other, IP65

• Panel Type
• PLC Based

• Application
• Motor control

• Current Rating
• 5000A

• Material
• Other, CRCA

• Panel Type
• MCC Panel

• Application
• Automatic Power Distribution

• Cabinet Material
• CRCA Steel

• Cooling System
• Natural Air Cooled

• Current Rating
• 2000A max

• Dimension (L*W*H)
• Custom Size

• Display Type
• Other, Analog/Digital

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, 67

• Material
• Other, CRCA

• Panel Type
• Automatic Control Panel

• Protection Class
• Class 1

• Protection Level
• IP67

• Rated Current
• Upto 2000 Amps

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415 V

• Standard
• IS/IEC-61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Way
• Multiple ways

• Application
• Automatic Mains/Generator Changeover

• Base Material
• Other, CRCA Steel

• Cabinet Material
• CRCA Steel

• Components
• Contactor, MCCB, Indication Lamps, Meter

• Connectivity Type
• Hardwired

• Control System
• Automatic Relay Logic

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 1600A

• Dimension (L*W*H)
• 1200x800x300 mm

• Display Type
• Other, LED Indication

• Features
• Fully Automatic, Fault Status Indication, Bus Duct Provision

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, CRCA

• Maximum Output Current
• 1600A

• Operating Voltage
• 415 V

• Panel Type
• Electrical Panel

• Product Type
• Other, Auto Changeover Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 1600A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 440 V

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 3 Way

• Application
• Industrial & Commercial Motor Control

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Circuit Breakers, Overload Relays, Contactors

• Connectivity Type
• Cable Entry from Top/Bottom

• Control System
• Automatic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 800A

• Dimension (L*W*H)
• Customized

• Display Type
• Other, Analog/LED Indication

• Features
• Modular design, Easy maintenance, Compartmental construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 1600A

• Operating Voltage
• 415 V

• Panel Type
• Compartmental

• Product Type
• Other, MCC Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 1600A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Way
• Multi-Way

• Application
• Electrical Power Distribution

• Base Material
• Stainless Steel

• Cabinet Material
• Stainless Steel

• Components
• MCB, MCCB, Busbar

• Connectivity Type
• Terminal Block

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 125 A

• Dimension (L*W*H)
• 700x500x250 mm

• Display Type
• Other, Analog Meter

• Features
• Lockable Door, Cable Entry Top, Earth Bar, Rust Proof

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Stainless Steel

• Maximum Output Current
• 125 A

• Operating Voltage
• 230 V

• Panel Type
• Wall Mounted

• Product Type
• Other, Power Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 125 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 230 V

• Rated Voltage
• 230 V

• Standard
• IEC Standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way

• Application
• Power Distribution

• Cabinet Material
• Mild Steel Sheet

• Control System
• Electrical

• Cooling System
• Air Ventilated

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 600A

• Dimension (L*W*H)
• Standard/Custom

• Display Type
• Other, Analog/Indicator Lamps

• Features
• Modular, Compact Design

• IP Rating
• Other, IP42

• Material
• Mild Steel

• Operating Voltage
• 415 VAC

• Panel Type
• PMCC

• Protection Level
• Other, High

• Rated Current
• Upto 2000 Amps

• Rated Voltage
• 415 V

• Surface Finish
• Powder Coated

• Way
• Multiple ways

• Application
• Industrial Motor Control

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Contactor, MCB, Overload Relay, VFD Unit, Control Relays, Terminal Blocks

• Connectivity Type
• Wired

• Control System
• Automatic/Manual

• Cooling System
• Ventilated (with Exhaust Fan)

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 100 A

• Dimension (L*W*H)
• 1200 x 800 x 300 mm

• Display Type
• Other, Digital Display

• Features
• Dust proof, Corrosion Resistant, Easy Installation, Remote Monitoring Option

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 100 A

• Operating Voltage
• 380-480 V AC

• Panel Type
• VFD Control Panel

• Product Type
• Other, Electrical VFD Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 100 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Three Phase

• Application
• Industrial Motor Control and Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• Contactor, Overload Relay, MCCB, MCB, Indicating Lamp, Push Buttons

• Connectivity Type
• Hardwired / Cable Entry (Top/Bottom)

• Control System
• Manual / Automatic

• Cooling System
• Natural air cooled

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 2000A

• Dimension (L*W*H)
• As per requirement

• Display Type
• Other, Analog/LED Indication

• Features
• Modular Design, Easy Maintenance, Trouble-free Performance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 2000A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Motor Control Center (MCC) Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 2000A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Light Grey (RAL 7035)

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm / 2 mm

• Way
• Multi-way (Customizable)

• Application
• Industrial Power Distribution

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• Mild Steel with Powder Coating

• Components
• Air Circuit Breaker (ACB), MCCB, MCB, Indication Lamps, Control Switches, Metering Devices

• Connectivity Type
• Wired

• Control System
• Automatic / Manual

• Cooling System
• Natural / Forced Air

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 1000A - 2500A

• Dimension (L*W*H)
• As per requirement / Custom Built

• Display Type
• Other, Analog / Digital Meter

• Features
• High Electrical & Mechanical Strength, Fully Compartmentalized, Easy Maintenance, Custom Design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 2500 A

• Operating Voltage
• 380-415 V

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Control Centre Panel (PCC Panel)

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP52 / IP54

• Rated Current
• Upto 2500 Amp

• Rated Insulation Voltage
• 690 V AC

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Siemens Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm to 3 mm

• Way
• 3 Way / Customizable

• Application
• Industrial

• Current Rating
• 4500A

• Frequency (MHz)
• 50Hz

• IP Rating
• Other, IP 67

• Material
• Mild Steel

• Rated Voltage
• 415 V

• Application
• Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• PLC, MCB, MCCB, Relays, SMPS, Indicators, Terminal Blocks

• Connectivity Type
• Ethernet, RS-485, USB

• Control System
• Programmable Logic Controller (PLC)

• Cooling System
• Ventilation Fan

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 200A

• Dimension (L*W*H)
• 1200 mm x 800 mm x 400 mm

• Display Type
• Other, LED Indication

• Features
• Dust Proof, Corrosion Resistant, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 200A

• Operating Voltage
• 415V AC

• Panel Type
• Automatic

• Product Type
• Other, PLC Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 150A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 3 Way

• Application
• Industrial

• Base Material
• Other, CRCA

• Cabinet Material
• CRCA

• Components
• Capacitor, APFC Relay, Bus Bar, Contactor

• Connectivity Type
• Wired

• Control System
• Automatic Contactor Based

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, CRCA

• Current Rating
• Upto 2000 Amps

• Dimension (L*W*H)
• Custom As Required

• Display Type
• Other, Digital Metering

• Features
• Heavy Duty Capacitor, Aluminium Bus Bar, Siemens APFC Relay, Automatic Operation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, CRCA

• Panel Type
• Power Factor Panel

• Product Type
• Other, Automatic Power Factor Correction Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Upto 2000 Amps

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IS & IEC Standards

• Surface Color
• Other, Light Gray

• Surface Finish
• Powder Coated

• Thickness
• 2 mm Approx

• Way
• 6 Stage

• Application
• Industrial Motor Control

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Contactors, Soft Starter Module, Overload Relay, MCCB, Control Transformer

• Connectivity Type
• Hardwired

• Control System
• Microprocessor-Based Controller

• Cooling System
• Forced Air Cooling

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 800 A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Digital Display

• Features
• Smooth motor starting, Inbuilt protection, Energy saving, User friendly interface

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP54/IP55

• Material
• Mild Steel

• Maximum Output Current
• Up to 800 A

• Operating Voltage
• 380-440 V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Soft Starter Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP54/IP55

• Rated Current
• Up to 800 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• IEC/IS Standard Compliant

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• 3 Way

• Application
• Industrial Motor Control

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MPCB, Contactors, Overload Relay, Timer, Indications, Push Buttons

• Connectivity Type
• Hardwired

• Control System
• Automatic / Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel / Glass (Inspection Window)

• Current Rating
• Up to 150A

• Dimension (L*W*H)
• As per requirement (typically 700x500x250mm)

• Display Type
• Other, Analog/LED Indicator

• Features
• Easy Installation, High Durability, Corrosion Resistant, Shock Proof

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 150A

• Operating Voltage
• 415V 3-Phase

• Panel Type
• Floor Mounted

• Product Type
• Other, Star Delta Starter Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 100A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Siemens Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm to 2 mm

• Way
• 3-Phase
